其他 ADVANTECH研华共创原装正品ADVANTECH研华共创AMAX-5570E V2

原装正品ADVANTECH研华共创AMAX-5570E V2

ADVANTECH研华共创AMAX-5570E V2

货号:

库存: 0

品牌: ADVANTECH研华共创

¥0.00

Intel Atom Embedded Controller

分类: 其他, ADVANTECH研华共创,

产品详情

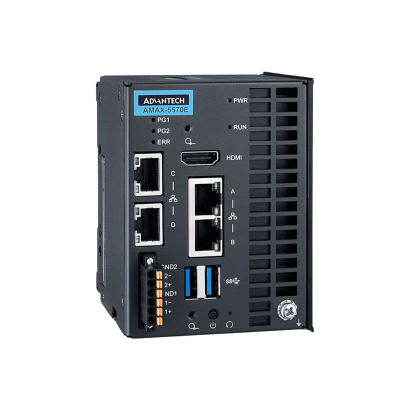

Intel Atom® Embedded Controller

• Optimized BIOS & Embedded OS for 1ms real-time control (Windows & Linux)

• Achieves 32-axis motion control with 500 μs EtherCAT cycle time under Linux

• OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS

• EtherCAT, PROFINET, Ethernet I/P, and CANopen are OT connectivity feature enabled by CODESYS

• Intel Atom® quad-core x6414RE processor

• System I/O with 4 x GbE, 2 x USB, 2 x Isolated COM, 1 x HDMI, 1 x 5 pin terminal (dual power input)

• AMAX-5000 EtherCAT Slice I/O expansion and AMAX-5400 PCIe modules, optional for left side (max.2)

• iDAQ-964 modules, optional for left side

• EMC compliance for energy management and Battery Energy Storage System (IEC-61000-4 Industrial requireme

Intel Atom® Embedded Controller
